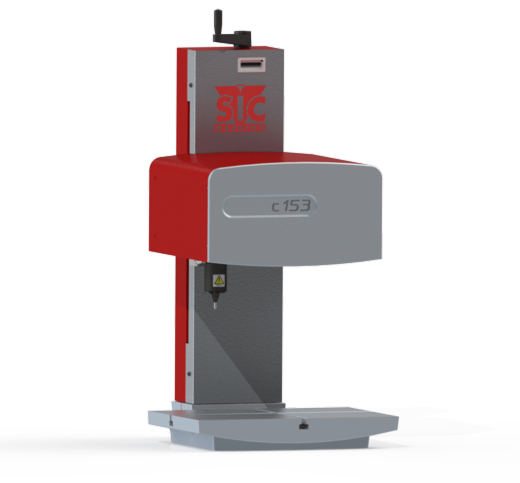

E10 C 153 ZA Dot Peen Marking Machine

As its name represents it is a dot peen marking machine with automatic Z-axis, capable of marking on surfaces of plastic and steel (up to 62 HRC).


High Speed Accuracy Rapid yet highly precise guide
Consistanct Autosensing systeem guarantees long lasting, high quality mark
Automatic Z-axis Automatic Movement(250 mm Stroke)
Rugged And Reliable Base constructed of cast alluminium stylus designd for intense industrial use

Dot Peen Alphanumeric 2D DataMatrix Code Logo



Marking window: 160 x 100 mm
Weight: 30kg
Dimensions: 385 x 350 x 636 mm
Stylus: Carbide 60 mme
Column Stroke: Up to 250 mm
Z-Axis Speed:: Up to 100 mm/sec.


Dimensions: 322 x 380 x 112 mm
Weight: 5kg
LCD Screen Resolution: 480 x 272 p.
Keyboard: QWERTY-Integrated, Membrane Overlay
Power: 300 Watt
Power Supply: Single Phase (85 to 260VAC, 50-60Hz)
Number of Controlled Axis: 2 (optional 3 and 4 axis available)
Card Options: Booster (deep marking) and Ethernet (communication)
USB Port: Transfer of Marking Files


Marking Files: More Than 2000
Memory: 7110 Ko
Alphanumeric Characters: Serial Number, Date Coding
Logos: Creation from PC Software
Datamatrix: Up to 348 Characters, 48 x 48 dots
Fonts: Arial, Courier, OCR, and OCRA
Style Angular, Radial, Inverse, and Mirror
Speed Up to 5 Characters Per Second
Character Size: From 0.1 mm to 99 mm
Impact Force: 9 Adjustable Levels
Depth: Up to 0.5 mm
Resolution Between Dots: 0.05 mm
Maximum Stylus Stroke: Up to 8 mm
Work Shift Management: 10 Shifts
Password Protection: 3 Security Levels
Historical Function: Password Protected
Maintenance Assistance: Auto-Diagnostic Component
Languages Available: 17


Ports: RS232, RS422, USBx2, RS485, Profibus, and Ethernet Optional Board
Inputs/Outputs: 16
External Keyboard Input: USB
External Output: 5V-0.5A and 24V-0.5A
Logos: Creation and Transfer Software
File Backup on PC: USB Key for Transfer
Database Link: Optional
