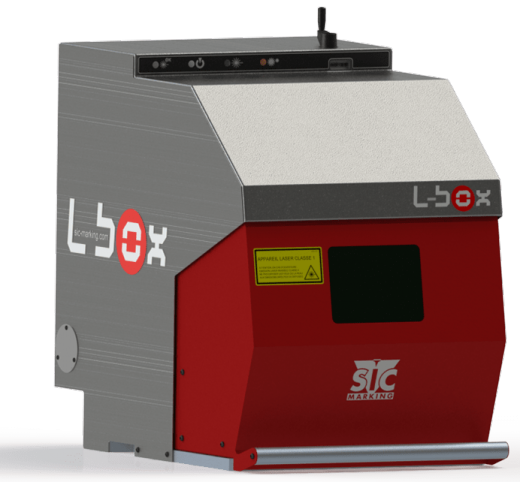

L-Box Laser System

L-Box Laser Marking System was designed with the active movement of industrial environments in mind. It is outfitted with a highly powered, pulsed wave ytterbium-doped fiber laser which is easy to use, even for users with minimal training in laser technology. It is a Device that emits light through a process of optical amplification based on the stimulated emission of electromagnetic radiation.

FEATURE

Superior Performance Record consistant, high quality marking
Ruggedly Reliable Maintenance free!
Fiber Laser Source Marks almost any material
Security and Compliance Integrated safety loop (class 1(EN 60825-1))

Laser Dot Peen Alphanumeric 2D DataMatrix Code Barcode Logo

VIDEO

MACHINE FEATURE

Marking window: 100×100 (option 170 x 170 mm)
Marked part dimensions: Max.height 235 mm, Max lenght 500 mm
Weight: 40kg
Security: Class 1 Configuration
Control: PC-based operation

ELECTRONIC FEATURE

Source: Pulsed Ytterbium Fiber Laser
Operation Mode: Pulsed (20 to 80kHz)
Wavelength: 1064nm
Optical Fiber Length: 3m
Average Power: 10,20W, or 50W
Peak Power: 10kw
Positioning Focus: Built-In Laser Pointer
Cooling System: Air-Cooled Only

STEERING SOFTWARE

The L-Box marking equipment operates on a PC-based mode, using SIC Marking’s proprietary software interface, SIC Laser Advanced. Creating and editing files, and managing desired settings can be done from any PC (e.g. optimize the cycle time, improve contrast/colors, and change the main speed, frequency, and power).
