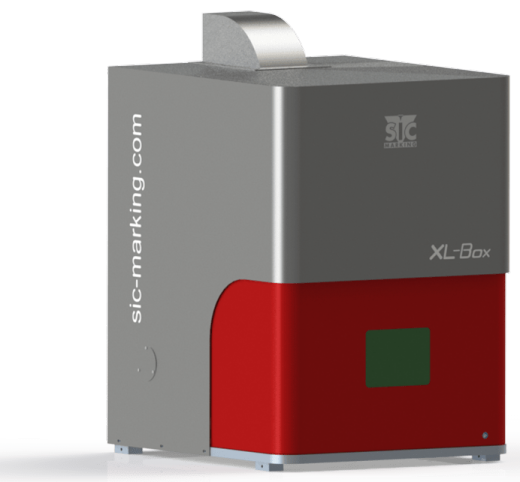

XL-Box Laser System

XL-Box Laser System is designed after the popular L-Box marking System with larger internal dimensions 550 mm x 550 mm (21.65” x 21.65”) work area. It is made up of solid steel and is equipped with pneumatically powered secure door that automatically locks when the marking starts and opens when the marking is stopped. It is a Device that emits light through a process of optical amplification based on the stimulated emission of electromagnetic radiation.


Powerful Deep, fast marking
User Friendly Operation Smart motorized Z-axis, automatic door, intuitive software
Ruggedly Reliable Maintenance free, 5 year warranty
Versatile Any marking types, on all metals and some plastics

Laser Dot Peen Alphanumeric 2D DataMatrix Code Barcode Logo



Marking window: 170 x 170 mm or 100 x 100 mm
External Dimensions (l x d x h): 655 x 756 x 1020 mm
Working Area: 570 x 564 mm
Marked Part Maximum Height & Length: 370 mm, 570 mm
Security: Class 1 Configuration
Control: PC-based operation


The XL-Box fiber laser is column mounted marking system designed to operate with the Rack-Controller Fiber Unit.

Source: Pulsed Ytterbium Fiber Laser
Operation Mode: Pulsed (20 to 500kHz)
Wavelength: 1064nm
Optical Fiber Length: 3m
Average Power: 10,20W, or 50W
Peak Power: 10kw
Positionning/Focus: Built-In Laser Pointer
Cooling System: Air-Cooled Only
